3D PRINTED RC OUTBOARD BUILD PAGE
Files and Bill of Material at bottom of page

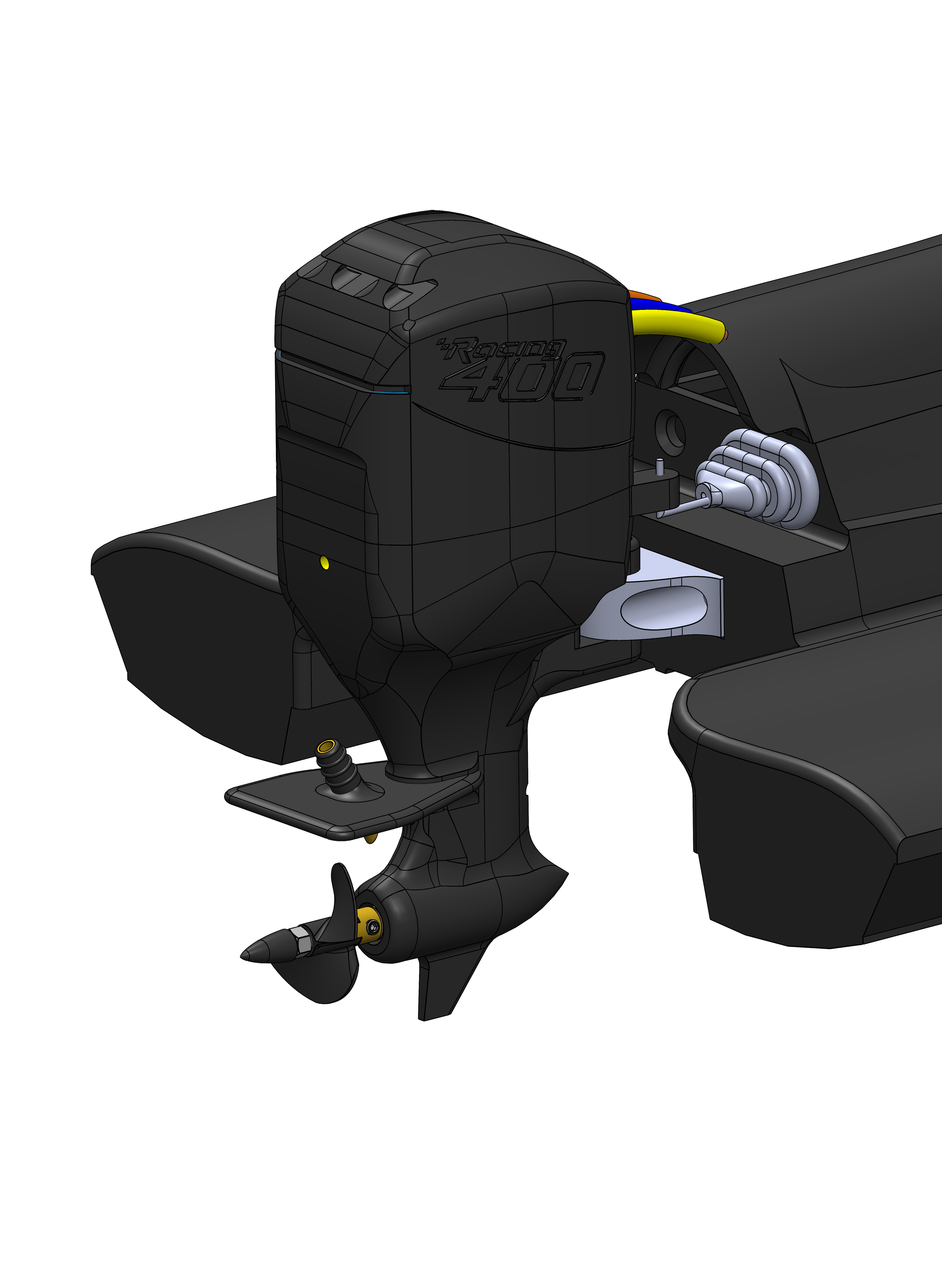

Now featuring water pickup for cooling speed controllers and onboard electronics! Simply hook up a piece of tubing to the Whale Tail Pickup (STL File). Tested and verified to provide effective cooling water flow.
3D PRINT FILES
CLICK HERE FOR FILES
https://drive.google.com/drive/folders/10ipmRuHgaxUOMKwqo1g-NpzzQaIRKynb?usp=share_link
DESIGNS ARE FOR PERSONAL USE ONLY AND MAY NOT BE USED FOR ANY COMMERCIAL PURPOSES.
BILL OF MATERIALS
| ITEM | QUANTITY | LINK |
|---|---|---|
Horizontal Stainless Shaft (⌀3mm X 52mm Long) | 1 | https://amzn.to/3MI8sBm |
Vertical Stainless Shaft (⌀3mm X 56mm Long) | 1 | https://amzn.to/3MI8sBm |
3x7x3 Stainless Ball Bearing | 4 | https://ebay.us/p1ilT0 |
20 Tooth Brass Bevel Gear | 2 | https://ebay.us/pxRHb0 |
3mm ID X 5mm OD Ring Shim Kit | 1 | https://amzn.to/45Du9v3 |
⌀6mm X 2mm Thick Neodymium Magnets | 12 | https://amzn.to/42g3K3I |
Shaft Dog/Propeller Coupler | 1 | https://ebay.us/TmsuT7 |
32mm Propeller | 1 | https://amzn.to/3N5TMxb |
⌀3mm X 30mm Long Clevis Pin | 1 | https://amzn.to/3qmVIsr |
1mm Clevis Pin Retainer (R-Clip) | 1 | https://amzn.to/45CDcfR |
M3 X 25mm Long Socket Cap Screw | 1 | https://amzn.to/3IXodDz |
M3 Plain Nut | 3 | https://amzn.to/3oKztfs |
M3 Nylock Nut | 1 | https://amzn.to/3ORcp9H |
M3 Washer | 1 | https://amzn.to/3WVYIby |
M2 X 6mm Long Panhead/Button Cap Screw | 2 | https://amzn.to/3IVF0Xx |
M3 X 6mm Long Grub Screw | 2 | https://amzn.to/3Ne11DF |
M2 X 3mm Long X ⌀3.5 Heat Insert | 2 | https://amzn.to/3NbVFZp |
3650 Size 3900 KV Brushless Motor and 60 Amp ESC | 1 | https://amzn.to/43EOs9J |
CNC Shaft CouplerS (3mm & 3.17mm/0.125 INCH) | 1 | https://www.aliexpress.us/item/2255800015627327.html |
